DUROSOL PLUS ISR clip for rigid and pliable conduits
DUROSOL PLUS clip is part of the 3layer conduit system DUROSOL PLUS – DUROFLEX PLUS and is designed to mount with safety the rigid and pliable conduits.
It is produced by specially stabilized thermoplastic PO blend in black color RAL 9004 and has enhanced protection to UV radiation. DUROSOL PLUS clips are compatible with nail fastening tools, providing ease and safety to the electrical installation.
Along with the 3layer conduits DUROSOL PLUS and DUROFLEX PLUS, the fittings (connection coupler and adaptor) and the junction boxes with seals, all in black color RAL 9004, they compose a special conduit system which is capable of covering multiple needs at the electrical installation.
DUROSOL PLUS clip incorporates a special anti-rodent additive to maximize safety in electrical installations from animal attacks. (Patent Protected by European Patent Office).
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
DUROSOL PLUS clips are ideal for conduit mounting on exposed and concealed type installations, such as concrete, underplaster and screed.
- APPLICATION STANDARD:EN 61386.1
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 9004 Black
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
Product Conformity to all requirements of relative European Directives.- Product with extra UV stability
- Non flame propagating product
- Product is made of halogen free raw materials
- Product is not an attractive food to rodents
- Min-max permanent application temperature
- Antistatic Technology IAS (Patent Protected 1009810)
- Min-max permanent application temperature
- Antiscratch Technology ISR (Patent Protected 1010513)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1No toxic or corrosive gases in case of fire
2Recommended fastening space is 50cm for vertical and 40 cm for horizontal installations
3It can be mounted with the use of 4mm screws and plugs
4It has side slots for easy positioning to rails
5Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
6Protection against scratching (Patent Protected: 1010513)
7Compatible with nail fastening tools and it is recommended to use nails of at least 30mm
| Properties | |
| Lower temperature range | -25oC |
| Upper temperature range | +105oC |
| Electrical characteristics | With electrical insulated characteristics |
| Resistance to flame propagating | Non flame propagating |
| Additional Properties | |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PO blend |
| Halogen free | No toxic or corrosive gases in case of fire |
| Ageing resistance | UV stabilized |
| Rodent repellent | Not attractive to rodents |
| Antistatic Technology | Protection against static electricity |
| Antiscratch Technology | Protection against scratching from cable routing |

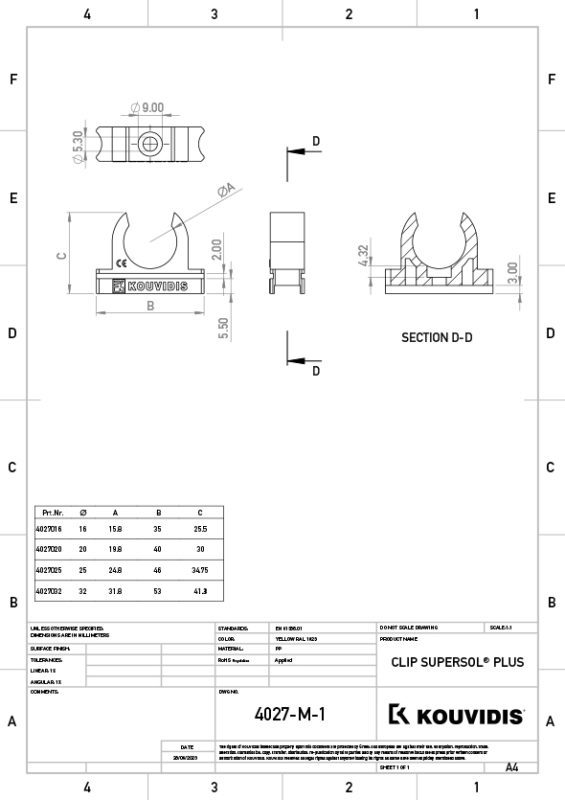

| Type | Part number |  |
 |
 |
 |
| Ø16 | 4049016 | 35.0 | 25.5 | 4×50 | 3400 |
| Ø20 | 4049020 | 40.0 | 30.0 | 4×50 | 2000 |
| Ø25 | 4049025 | 46.0 | 34.75 | 4×30 | 1920 |
| Ø32 | 4049032 | 53.0 | 41.3 | 30 | 1440 |
