DUROSOL PLUS ISR 3-layer rigid conduit
- CLASS:33431
- IMPACT RESISTANCE:2J
- RESISTANCE TO COMPRESSION:750 Nt
The innovative 3layer rigid conduit DUROSOL PLUS represents a new solution to the surface and concealed type electrical installations. DUROSOL PLUS conduit embraces the multilayer pipes technology that has been developed by KOUVIDIS since 2012 and consists of 3 different layers and multiple innovations. Along with the 3layer pliable conduit DUROFLEX PLUS, the accessories (connection coupler, clip, adaptor) and junction box with seals, all in black color RAL 9004, they compile a special conduits system which secures a smoother internal layer along its entire length.
The third layer of the conduit consists of 4 longitudinal lines, of indelible color, for the identification of the cables at the conduit’s inner layer; red lines indicate power cables whereas green lines indicate telecommunication cables.
The 3layer conduit DUROSOL PLUS is produced from specially stabilized thermoplastic PO blend, heavy metals free (RoHS), halogen free (EN 50642) and does not emit toxic or corrosive gases (EN 60754-2) making it, thus, the most reliable and safe solution to the electrical installation in case of fire.
DUROSOL PLUS conduit incorporates a special anti-rodent additive to maximize safety in electrical installations from animal attacks. (Patent Protected by European Patent Office).
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
Ideal for numerous applications at the electrical installation such as exposed (outdoor and indoor spaces, wooden walls, office ceilings, architectural surfaces) and concealed type (concrete, screed).
- APPLICATION STANDARD:EN 61386.21, ΕΝ 50642, ΕΝ 60754-2
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 3020 red (inner layer), RAL 9004 black (outer layer)
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
- TIGHTNESS DEGREES:min IP 65
Product Conformity to all requirements of relative European Directives.- Minimum resistance to compression
- Minimum resistance to impact
- Ingrees protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Non flame propagating product
- Friction Reduction at the internal wall of conduits
- Product is made of halogen free raw materials
- Product is not an attractive food to rodents
- Nominal outer diameter (mm)
- Antistatic Technology IAS (Patent Protected 1009810)
- Min-max permanent application temperature
- Antiscratch Technology ISR (Patent Protected 1010513)
- Longitudinal stripes of indelible color indicate the power of the protected cables
- Low acidity (EN 60754-2)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- RECOMMENDED APPLICATIONS

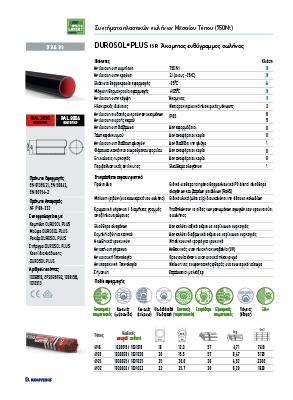

- DOWNLOADS
1Medium type compression (750Nt) and impact (2J) resistance at low temperature of -25°C
2Ideal solution for surface and concealed type installations
3Does not emit toxic and corrosive gases in case of fire
4Very good performance over concrete chemical substances
5High mechanical resistance at high temperature (105oC)
6Not attractive to rodents (European Patent EP2698792)
7Exceptional resistance to UV radiation
8Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
9Low friction due to ultra slip material added in the internal layer (test conducted according to IEC/TR 62470)
10Incorporates anti-scratch technology which reduces the surface wear on the inner layer caused by cable routing (Patent Protected: 1010513)
| Properties | Class | |
| Resistance to compression | 750Nt/5cm | 3 |
| Resistance to impact | 2J (at-25oC) | 3 |
| Lower temperature range | -25oC | 4 |
| Upper temperature range | +105oC | 3 |
| Resistance to bending | Rigid | 1 |
| Electrical characteristics | With electrical insulated characteristics | 2 |
| Protection against ingress of solid objects | min IP65 | 6 |
| Protection against ingress of water | min IP65 | 5 |
| Resistance against corrosion | Not applicable | 0 |
| Tensile strength | None declared | 0 |
| Resistance to flame propagating | Non flame propagating | 1 |
| Suspended load capacity | None declared | 0 |
| Fire effects | None declared | 0 |
| Environmental impact | Halogen Free | 1 |
| Additional properties | ||
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PO blend | |
| Ageing resistance | UV stabilized | |
| Rodent repellent | Not attractive to rodents | |
| Lower frictions | Ultra slip material added in the internal layer | |
| Color marking | Longitudinal stripes of indelible color indicate the power of the protected cables | |
| Halogen free | No toxic or corrosive gases in case of fire | |
| Antistatic technology | Protection against static electricity | |
| Antiscratch Technology | Protection against scratching from cable routing | |

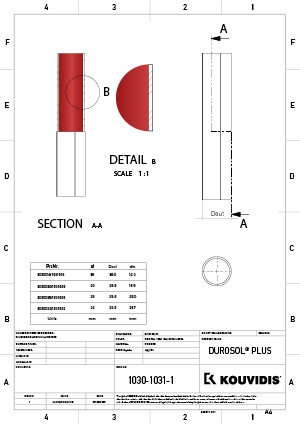

| Type | Part Number power / telecommunication currents |
 |
 |
 |
 |
 |
| Ø16 | 1030016 / 1031016 | 16.0 | 12.3 | 57 | 4,71 | 7410 |
| Ø20 | 1030020 / 1031020 | 20.0 | 15.5 | 57 | 6,47 | 5016 |
| Ø25 | 1030025 / 1031025 | 25.0 | 20.0 | 30 | 4,52 | 3300 |
| Ø32 | 1030032 / 1031032 | 32.0 | 25.7 | 30 | 6,20 | 1920 |
LEGEND
- Recommended
- Not recommended
- Ideal according to the manufacturer
| SCOPES | |
| Exposed | |
| Concealed (underplaster) | |
| Concealed (dry wall) | |
| Concrete | |
| Underfloor in screed | |
| Outdoor | |
| Buried underground | |
| Wood | |
| Concealed floor / ceiling | |
