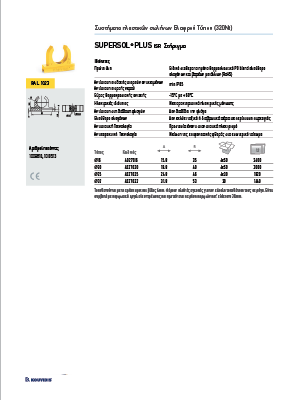

Clip SUPERSOL PLUS ISR Clip for rigid and pliable conduits in concealed installations
The new specially designed clip SUPERSOL PLUS constitutes part of the 3layer conduits system with anti-electromagnetic technology SUPERSOL PLUS and SUPERFLEX PLUS, making it the ideal solution for mounting rigid and pliable conduits in concealed type installations.
It is produced from specially stabilized thermoplastic PO blend in yellow color RAL 1023. Clips SUPERSOL PLUS are compatible with the use of nail fastening tools, providing thus ease and safety to the electrical installation.
APPLICATION FIELD
Clips SUPERSOL PLUS are the ideal solution for mounting conduits in concealed installations, such as on the concrete, the underplaster and underfloor on screed
- APPLICATION STANDARD:EN 61386.1
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 1023 yellow
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
Product Conformity to all requirements of relative European Directives.- Non flame propagating product
- Product is made of halogen free raw materials
- Nominal outer diameter (mm)
- Antistatic Technology IAS (Patent Protected 1009810)
- Min-max permanent application temperature
- Antiscratch Technology ISR (Patent Protected 1010513)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1Assembled with SUPERSOL PLUS - SUPERFLEX PLUS conduits for concealed type installations
2No toxic or corrosive gases in case of fire
3Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
4Recommended fastening space is 50cm for vertical and 40 cm for horizontal installations
5It has side slots for easy positioning to rails
6Compatible with nail fastening tools and it is recommended to use nails of at least 30mm
7Protection against scratching (Patent Protected: 1010513)
| Properties | |
| Lower temperature range | -25oC |
| Upper temperature range | +105oC |
| Electrical characteristics | With electrical insulated characteristics |
| Resistance to flame propagating | Non flame propagating |
| Additional Properties | |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PO blend |
| Halogen free | No toxic or corrosive gases in case of fire |
| Antistatic Technology | Protection against static electricity |
| Antiscratch Technology | Protection against scratching |
| Type | Part number |  |
 |
 |
 |
| Ø16 | 4045016 | 35.0 | 25.5 | 4×50 | 3400 |
| Ø20 | 4045020 | 40.0 | 30.0 | 4×50 | 2000 |
| Ø25 | 4045025 | 46.0 | 34.75 | 4×30 | 1920 |
| Ø32 | 4045032 | 53.0 | 41.3 | 30 | 840 |
