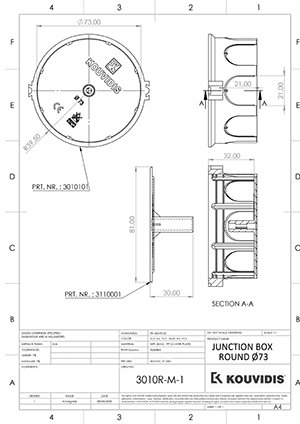

Round Ø73 Junction box for cavity walls
Round junction boxes have been designed for branching cables in flush mounting and cavity wall installations. they are produced by top quality raw materials that ensures maximum safety in the electrical installations.
APPLICATION FIELD
Ideal for flush mounting and cavity wall installations.
- APPLICATION STANDARD:ΕΝ 60670-22
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 5019 Blue (box), RAL 9016 White (cover plate)
Product Conformity to all requirements of relative European Directives.- Min-max permanent application temperature
- Non flame propagating product
- Product is made of halogen free raw materials
- Ingrees protection against solid objects and water (EN 60529)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1Assembled lengthwise, depending on the requirements of the electrical installation
2It has 8 conduit entries up to Ø21 (nominal outer diameter)
3Packaging do not contain cover plates
| Properties | |
| Lower temperature range | -15oC |
| Upper temperature range | +60oC |
| Resistance to heat | 650oC |
| Electrical characteristics | With electrical insulated characteristics |
| IP ingress protection | ΙΡ2Χ |
| Resistance to flame propagating | Non flame propagating |
| Additional Properties | |
| Raw material | Heavy metals free (RoHS), specially stabilized thermoplastic HIPS (base) and PO blend (cover plate) |
| Conduit entries | 8 up to Ø21 |
| Type | Part number |  |
 |
| Junction box | 3010103 | 100 | – |
| Cover plate | 3110001 | 100 | – |
