CONDUR ISR Heavy type rigid conduit

  • CLASS:44411
  • IMPACT RESISTANCE:6J
  • RESISTANCE TO COMPRESSION:1250 Nt

CONDUR rigid conduit has been produced since 1992 and is a part of CONDUR – CONFLEX conduit system for cable management and protection. It was the first heavy type plastic conduit that was produced in Greece and has been replaced the metal conduits over time. It has gained the trust of the electrician installer because of its high quality and has been used in hundreds of construction projects providing reliability and absolute safety in the electrical installation.

CONDUR conduit incorporates a special anti – rodent additive to maximize safety in electrical installations from animal attacks. (Patent Protected by European Patent Office).

LEARN MORE ABOUT THE INNOVATION

CONDUR – CONFLEX conduit system was awarded by the Greek Marketing Academy with the “Branded Industrial Product” Silver Award in Made in Greece awards 2019.

APPLICATION FIELD

Ideal for outdoor exposed installations which require increased safety measures and high mechanical requirements such as civil engineering (industrial buildings, infrastructure projects) and electric power stations. It doesn’t attract rodents and is the ideal solution for outdoor installations through its exceptional resistance to UV radiation. Their high impact strength, at low temperature environments, make them also ideal for cold weather conditions.

  • APPLICATION STANDARD:EN 61386.21
  • INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
  • COLOR:RAL 7035 Light grey
  • NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
  • TIGHTNESS DEGREES:min IP 65
  • Product Conformity to all requirements of relative European Directives.
  • The product and its production process are inspected and approved by VDE German institute
  • Minimum resistance to compression
  • Minimum resistance to impact
  • Min-max permanent application temperature
  • Ingrees protection against solid objects and water (EN 60529)
  • Product with extra UV stability
  • Non flame propagating product
  • Product is not an attractive food to rodents
  • Antistatic Technology IAS (Patent Protected 1009810)
  • Antiscratch Technology ISR (Patent Protected 1010513)
  • PROPERTIES
  • CHARACTERISTICS
  • PACKAGING
  • RECOMMENDED APPLICATIONS
  • DOWNLOADS
  • PROJECTS
1Exceptional resistance to UV radiation
2Not attractive to rodents (European Patent EP2698792)
3High ingress protection (min IP65), when connected with CONDUR coupler
4High compression (1250Nt) and impact (6J) resistance in low temperature of -25oC
5It has been tested and certified by VDE German Institute
6Engraved with laser printing and packed with safety straps in blue color 100% recyclable polyethylene film
7Awarded by the Greek Marketing Academy with the "Branded Industrial Product" Silver Award (Made in Greece awards 2019)
8Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
9Protection against scratching from cable routing (Patent Protected: 1010513)
Properties Class
Resistance to compression 1250Nt/5cm 4
Resistance to impact 6J (at -25oC) 4
Lower temperature range -25oC 4
Upper temperature range +60oC 1
Resistance to bending Rigid 1
Electrical characteristics With electrical insulated characteristics 2
Protection against ingress of solid objects min IP65 6
Protection against ingress of water min IP65 5
Resistance against corrosion Not applicable 0
Tensile strength None declared 0
Resistance to flame propagating Non flame propagating 1
Suspended load capacity None declared 0
Fire effects None declared 0
Environmental impact None declared 0



Additional properties
Raw material Heavy metals free (RoHS), specially stabilized thermoplastic U-PVC
Ageing resistance UV stabilized
Rodent repellent Not attractive to rodents
Antistatic Technology Protection against static electricity
Antiscratch Technology Protection against scratching from cable routing
Type Part Number
Ø16 1021016 16.0 12.1 30 3,50 8100
Ø20 1021020 20.0 16.0 30 4,70 5400
Ø25 1021025 25.0 20.9 15 3,25 3360
Ø32 1021032 32.0 27.4 15 4,40 2145
Ø40 1021040 40.0 35.1 9 3,60 1350
Ø50 1021050 50.0 44.7 9 4,90 702
Ø63  1021063 63.0 57.2 9 6,85 486
LEGEND
  • Recommended
  • Not recommended
  • Ideal according to the manufacturer
SCOPES
Exposed
Concealed (underplaster)
Concealed (dry wall)
Concrete
Underfloor in screed
Outdoor
Buried underground
Wood
Concealed floor / ceiling
Declarations of Conformity
01/02/2024
CONDUR – Declaration of conformity
File Type .PDF
File Size 435 KB
01/02/2024
RoHS Declaration of Conformity
File Type .PDF
File Size 318 KB
01/02/2024
Reach Declaration
File Type .PDF
File Size 290 KB
Test Results
08/08/2023

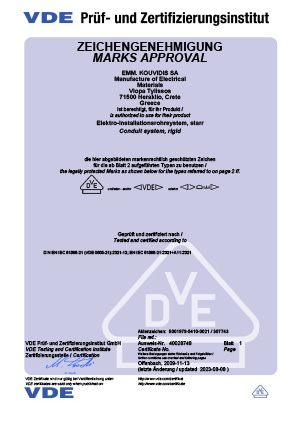

CONDUR – VDE Marks Approval
File Type .PDF
File Size 373 KB
19/11/2019
VDE RoHS Certificate
File Type .PDF
File Size 105 KB
02/02/2024

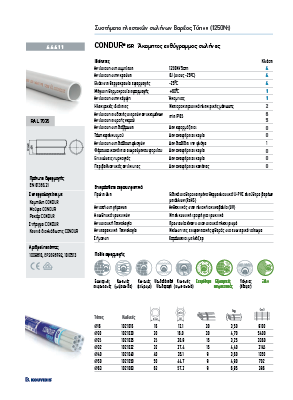

CONDUR – Product Data Sheet
