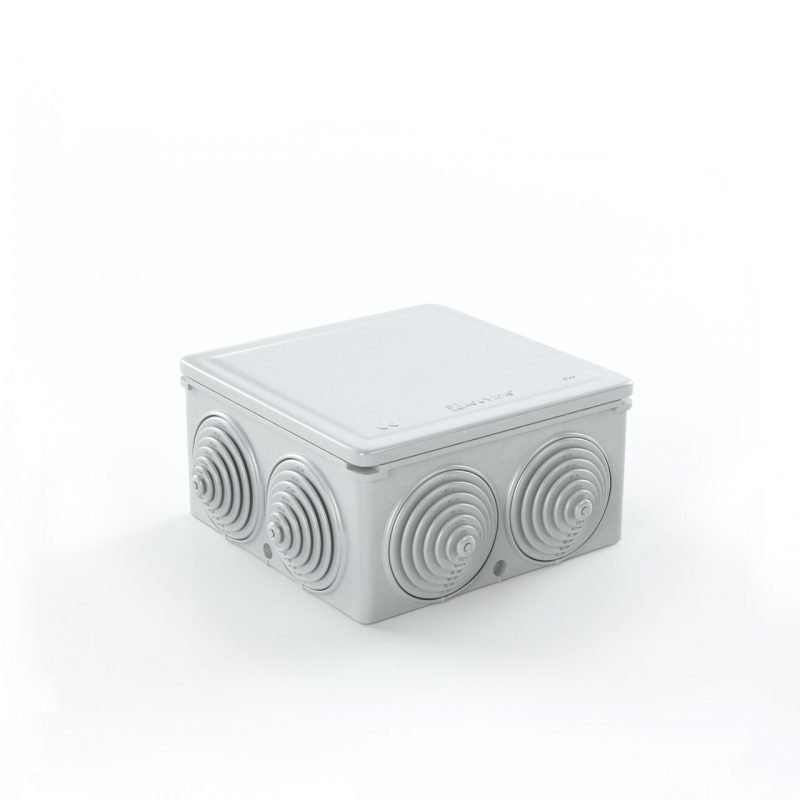

CONDUR ISR Watertight junction box with plug in seals
KOUVIDIS launched COUNDUR junction boxes in 1992 in order to replace the metal ones. Since then, the company has proceeded to many upgrades to improve their functionality, ergonomics and mechanical strength. CONDUR junction boxes have gained the trust of the electrical installer and have been used in thousands of construction projects due to their high quality and reliability. They are a part of CONDUR – CONFLEX, MEDISOL – MEDIFLEX, SILCOR – SIFLEX, CONDUR HF – CONFLEX HF and MEDISOL PLUS – MEDIFLEX PLUS conduit systems for cable management and protection.
CONDUR junction box with seals incorporates a special anti – rodent additive to maximize safety in electrical installations from animal attacks. (Patent Protected by European Patent Office).
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
Ideal for exposed electrical installations.
- APPLICATION STANDARD:EN 60670-22
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 7035 Light grey
- TIGHTNESS DEGREES:min IP 55
Product Conformity to all requirements of relative European Directives.- Min-max permanent application temperature
- Ingrees protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Non flame propagating product
- Product is made of halogen free raw materials
- Product is not an attractive food to rodents
- Antistatic Technology IAS (Patent Protected 1009810)
- Antiscratch Technology ISR (Patent Protected 1010513)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1Provided with ready holes which can be assembled with different type of adaptors in order to connect different type of conduits
2Watertight due to their elastic and directly mounted cover plate, providing Ingress Protection IP 55 and less installation time
3At the base of the boxes are four inputs (knock outs) with dimensions between Ø20 and Ø32 of which conduits or wires can be entered. Their removal is performed using an additional tool
4On each side there are special guides for the horizontal / vertical alignment of the box with the rest of the installation
5Each side of the boxes has provision for condensation when needed for the electrical installation
6Flame retardant raw materials with 650οC thermal resistance (Glow wire test- IEC 60695-2)
7Inside the boxes there are special ports for horizontal or diagonal positioning of additional installation mechanisms (e.g. Starters)
8There is a useful guide at the cover plate's back related to the cables' diameter connections number at an installation
9Not attractive to rodents (European Patent EP2698792)
10The permissible operating circuits voltage inside the box can be up to 800V, allowing the use of three-phase circuits of normal operation 400VAC (±10% or ±15%) and DC circuits of photovoltaic or other applications
11No toxic or corrosive gases in case of fire
12Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
13Protection against scratching from cable routing (Patent Protected: 1010513)
| Properties | |
| Raw material | PC blend (Cover plate and plug in seals are made of PE) |
| Temperature range | -25oC to +60oC |
| Electrical characteristics | With electrical insulated characteristics |
| Resistance to flame propagating | Non flame propagating |
| Number of entries | 7 |
| Seals | Plug in seals |
| Ingress protection | ΙΡ55 |
| Number of base knock outs | 4 |
| Conduit alignment | Yes |
| Condensation opening | Yes |
| Flame retardant | 650oC |
| Voltage | 800V |
| UV stability | Yes |
| Halogen free | No toxic or corrosive gases in case of fire |
| Rodent repellent | Not attractive to rodents |
| Antistatic technology | Protection against static electricity |
| Antiscratch Technology | Protection against scratching from cable routing (Patent Protected: 1010513) |
| Type | Part number |  |
 |
 |
 |
 |
| Ø16/20 | 3013016 | 67 | 67 | 38 | 10 | 280 |
| Ø20/16 | 3013020 | 82 | 82 | 43 | 10 | 160 |
| Ø25/32 | 3013025 | 101 | 101 | 51 | 5 | 100 |
