CONDUR HF IAS Heavy type halogen free bend
- IMPACT RESISTANCE:6J
- RESISTANCE TO COMPRESSION:1250 Nt
CONDUR HF bend is a part of halogen free CONDUR HF – CONFLEX HF and MEDISOL PLUS – MEDIFLEX PLUS conduit systems for cable management and protection. It has the same properties as CONDUR HF conduit and is produced by a fully automated production line.
CONDUR HF bends are tested by the Quality Control laboratory of KOUVIDIS for their impact resistance (6J) at -45<sup>o</sup>C.
APPLICATION FIELD
Ideal for outdoor/indoor exposed installations which require increased safety measures and high mechanical requirements such as public gathering places (airports, hotels, tunnels, malls, theaters, subways etc,) and places with costly mechanical equipment (engine rooms, industrial spaces, computer rooms, etc.), as well as places with extreme temperature requirements (boiler rooms, cooling chambers etc.).
- APPLICATION STANDARD:EN 61386.21
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 7035 Light grey
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
- TIGHTNESS DEGREES:min IP 65
Product Conformity to all requirements of relative European Directives.- The product and its production process are inspected and approved by VDE German institute
- Minimum resistance to compression
- Minimum resistance to impact
- Min-max permanent application temperature
- Ingrees protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Non flame propagating product
- Product is made of halogen free raw materials
- Product is not an attractive food to rodents
- Antistatic Technology IAS (Patent Protected 1009810)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1No toxic or corrosive gases in case of fire
2CONDUR HF bend is being tested by KOUVIDIS quality control lab for its impact resistance (6J) at -45oC
3High ingress protection (min IP65), when connected with CONDUR coupler
4Engraved with laser printing and packed in 100% recyclable packaging for their maximum protection
5Not attractive to rodents (European patent EP2698792)
6Resistant to UV radiation
7Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
| Properties | |
| Resistance to impact | 6J (at -25oC) |
| Lower temperature range | -25oC |
| Upper temperature range | +120oC |
| Electrical characteristics | With electrical insulated characteristics |
| Protection against ingress of solid objects | min IP65 |
| Protection against ingress of water | min IP65 |
| Resistance to flame propagating | Non flame propagating |
| Additional properties | |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PC blend |
| Ageing resistance | UV stabilized |
| Halogen free | No toxic or corrosive gases in case of fire |
| Rodent repellent | Not attractive to rodents |
| Antistatic technology | Protection against static electricity |

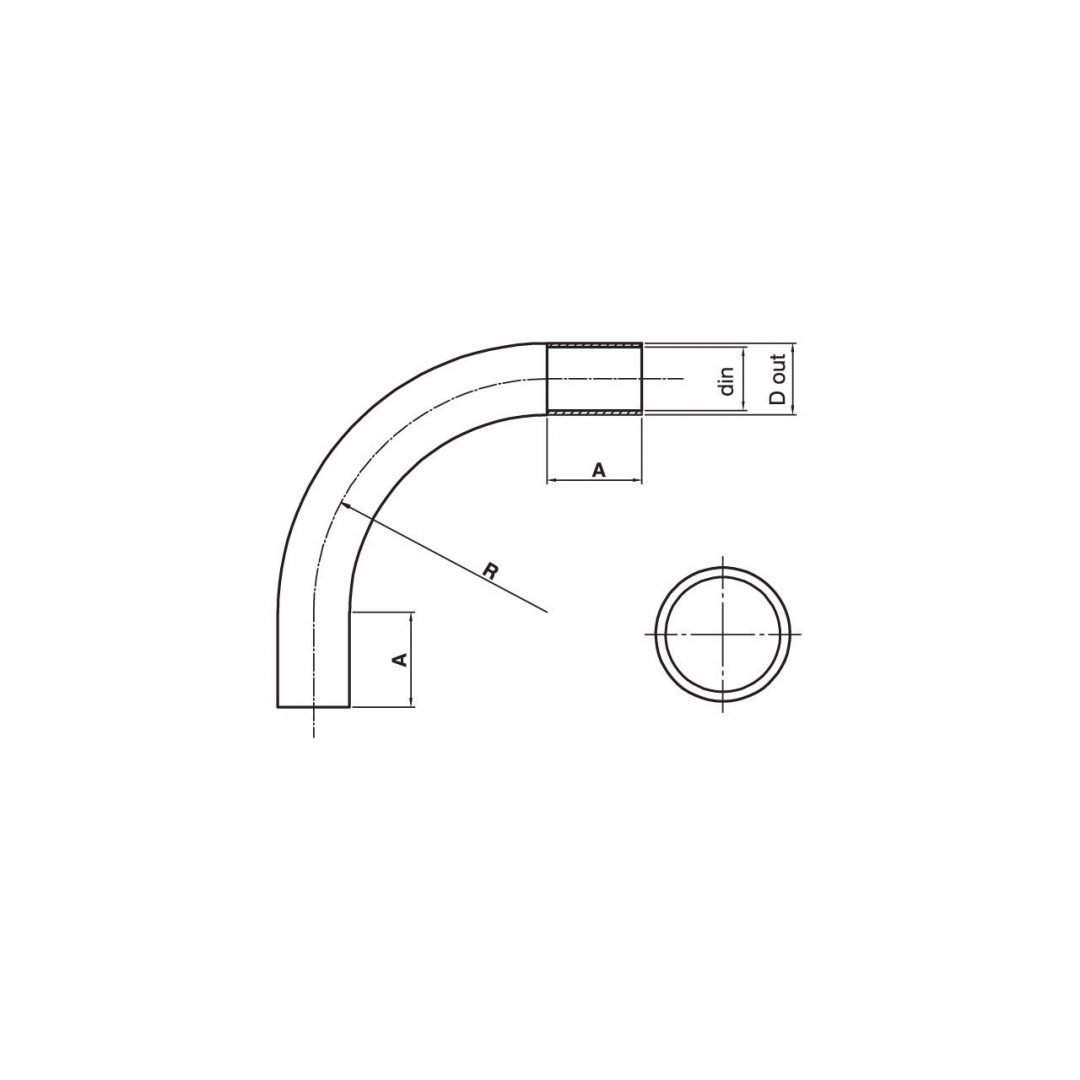

| Type | Part number |  |
 |
 |
 |
 |
 |
| Ø16 | 4013016 | 16.0 | 12.5 | 27.0 | 59 | 10 | 480 |
| Ø20 | 4013020 | 20.0 | 16.2 | 35.0 | 74 | 10 | 480 |
| Ø25 | 4013025 | 25.0 | 20.8 | 36.7 | 108 | 10 | 240 |
| Ø32 | 4013032 | 32.0 | 27.5 | 47.6 | 142 | 6 | 48 |
| Ø40 | 4013040 | 40.0 | 34.8 | 52.9 | 144 | 6 | 84 |
