GEOSUB _ISR Double structured wall rigid pipe with color identity

CLASS:N450
IMPACT RESISTANCE:Normal
RESISTANCE TO COMPRESSION:450 Nt

GEOSUB N450 rigid conduit in bars belongs to the same product family as GEONFLEX rigid conduit in bars and is one of the most important investments of KOUVIDIS in the field of cable management and protection in buried underground networks. It was launched in 2014 in order to be used in buried underground networks with lower mechanical requirements. In 2017, the company launched the 2<sup>nd</sup> generation of GEOSUB N450 with color marking, which specifies the color coding according to the application field (electrical installations or communication systems), upgrading both product itself and electrician’s work.

LEARN MORE ABOUT THE INNOVATION

APPLICATION FIELD

Ideal for protection and management of buried underground power and telecommunication networks (motorways, road networks, tunnels etc.), urban development projects (pedestrianization, shaping of public spaces, rehabilitation of historic centers, etc.), RES urban development projects (photovoltaic and wind parks), construction projects such as industrial buildings, shopping centers, housing, etc.

APPLICATION STANDARD:EN 61386-24, NF P98-332
INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
COLOR:RAL 3020 red (inner layer), RAL 9004 black (outer layer)
NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
TIGHTNESS DEGREES:min IP 40

Product Conformity to all requirements of relative European Directives.
The product and its production process are inspected and approved by VDE German institute
Min-max permanent application temperature
Ingrees protection against solid objects and water (EN 60529)
Product with extra UV stability
Product that propagates flame
Product is made of halogen free raw materials
Antistatic Technology IAS (Patent Protected 1009810)
Antiscratch Technology ISR (Patent Protected 1010513)

PROPERTIES
CHARACTERISTICS
PACKAGING
RECOMMENDED APPLICATIONS

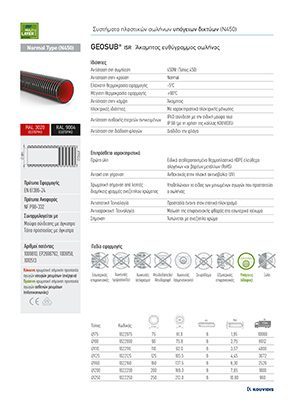

DOWNLOADS
PROJECTS

1Ensures Ingress Protection IP40 when connecting with KOUVIDIS connection couplers with hooks and IP68 when using KOUVIDIS adhesive and sealant

2UV stabilized

3Printed with their basic properties, packed with special BLACK safety straps and affixed with an informative waterproof indelible mauve label

4Longitudinal thin stripes of indelible color indicate the power of the protected cables

5Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)

6Incorporates anti-scratch technology which reduces the surface wear on the inner layer caused by cable routing (Patent Protected: 1010513)

7Incorporates anti-scratch technology which reduces the surface wear on the inner layer caused by cable routing (Patent Protected: 1010513)

Properties
Resistance to compression	450 Nt (Type 450)
Resistance to impact	Normal
Lower temperature range	-5^oC
Upper temperature range	+90^oC
Resistance to bending	Rigid
Electrical characteristics	With electrical insulated characteristics
IP ingress protection	IP 40 (coupler connected)
IP ingress protection	IP 68 (coupler bonded with KOUVIDIS sealant)
Resistance to flame propagating	Flame propagating

Additional properties
Raw material	Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic HDPE
Ageing resistance	UV stabilized
Color marking	Longitudinal thin stripes of indelible color indicate the power of the protected cables
Halogen free	No toxic or corrosive gases in case of fire
Antistatic technology	Protection against static electricity
Antiscratch Technology	Protection against scratching from cable routing

Type	Part number
Ø75	1022075	75.0	61.0	6	2,40	10080
Ø90	1022090	90.0	75.8	6	3,00	6912
Ø110	1022110	110.0	92.0	6	3,80	4800
Ø125	1022125	125.0	105.5	6	4,50	3072
Ø160	1022160	160.0	137.5	6	6,20	2520
Ø200	1022200	200.0	169.3	6	9,00	1800
Ø250	1022250	250.0	212.0	6	11,00	960
