GEOSUB ISR Double structured wall corrugated pliable pipe with color identity
- CLASS:N450
- IMPACT RESISTANCE:Normal
- RESISTANCE TO COMPRESSION:450 Nt
GEOSUB N450 pliable conduit belongs to the same product family as GEONFLEX N750 pliable conduit and is one of the most important investments of KOUVIDIS in the field of cable management and protection in buried underground networks. It was launched in 2014 in order to be used in buried underground networks with lower mechanical requirements. In 2017, the company launched the 2nd generation of GEOSUB N450 with color marking, which specifies the color coding according to the application field (electrical installations or communication systems), upgrading both product itself and electrician’s work.
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
Ideal for protection and management of buried underground power and telecommunication networks (motorways, road networks, tunnels etc.), urban development projects (pedestrianization, shaping of public spaces, rehabilitation of historic centers, etc.), RES urban development projects (photovoltaic and wind parks), construction projects such as industrial buildings, shopping centers, housing, etc.
- APPLICATION STANDARD:EN 61386-24, NF P98-332
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 3020 red (inner layer), RAL 9004 black (outer layer)
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
- TIGHTNESS DEGREES:min IP 40
Product Conformity to all requirements of relative European Directives.- The product and its production process are inspected and approved by VDE German institute
- Min-max permanent application temperature
- Ingrees protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Product that propagates flame
- Product is made of halogen free raw materials
- Antistatic Technology IAS (Patent Protected 1009810)
- Antiscratch Technology ISR (Patent Protected 1010513)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- RECOMMENDED APPLICATIONS
- DOWNLOADS
- PROJECTS
1Cable guide with minimum tensile strength 650Nt
2Ensures Ingress Protection IP40 when connecting with KOUVIDIS connection couplers with hooks and IP68 when using KOUVIDIS adhesive and sealant

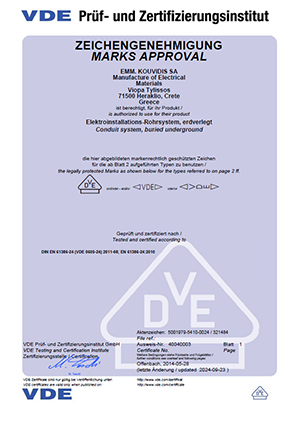

3It has been tested and certified by VDE German Institute
4Printed with their basic properties, packed with special BLACK safety straps and affixed with an informative waterproof indelible mauve label
5UV stabilized
6Longitudinal thin stripes of indelible color indicate the power of the protected cables
7Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
8Protection against scratching from cable routing (Patent Protected: 1010513)
9Protection against scratching from cable routing (Patent Protected: 1010513)
| Properties | |
| Resistance to compression | 450 Nt (Type 450) |
| Resistance to impact | Normal |
| Lower temperature range | -5oC |
| Upper temperature range | +90oC |
| Resistance to bending | Pliable |
| Electrical characteristics | With electrical insulated characteristics |
| IP ingress protection | IP40 (coupler connected) IP 68 (coupler bonded with KOUVIDIS sealant) |
| Resistance to flame propagating | Flame propagating |
| Additional properties | |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic HDPE |
| Ageing resistance | UV stabilized |
| Internal guide | Cable guide with minimum tensile strength 650Nt |
| Color marking | Longitudinal thin stripes of indelible color indicate the power of the protected cables |
| Halogen free | No toxic or corrosive gases in case of fire |
| Antistatic technology | Protection against static electricity |
| Antiscratch Technology | Protection against scratching from cable routing |
| Type |
Part number |
 |
 |
 |
 |
 |
| Ø32 | 2047032 | 32 | 24.8 | 50 | 5,30 | 40000 |
| Ø40 | 2047040 | 40 | 31.4 | 50 | 7,30 | 31500 |
| Ø50 | 2047050 | 50 | 40.5 | 50 | 8,20 | 21000 |
| Ø63 | 2047063 | 63 | 50.5 | 50 | 14,50 | 14000 |
| Ø75 | 2047075 | 75 | 61.5 | 50 | 15,50 | 10000 |
| Ø90 | 2047090 | 90 | 76.0 | 50 | 20,25 | 7000 |
| Ø110 | 2047110 | 110 | 92.7 | 50 | 29,00 | 4500 |
| Ø125 | 2047125 | 125 | 106.1 | 50 | 35,50 | 3500 |
| Ø160 | 2047160 | 160 | 138.4 | 25 | 25,50 | 1900 |
| Ø200 | 2047200 | 200 | 171.1 | 25 | 33,00 | 1225 |
LEGEND
- Recommended
- Not recommended
- Ideal according to the manufacturer
| SCOPES | |
| Exposed | |
| Concealed (underplaster) | |
| Concealed (dry wall) | |
| Concrete | |
| Underfloor in screed | |
| Outdoor | |
| Buried underground | |
| Wood | |
| Concealed floor / ceiling | |
